Olea Kiosk Handset Wiring and Configuration Instructions

The expected behavior for a system equipped with a handset is the following:

• The audio output will play over the speakerphone when the handset is cradled.
• The audio output will play through the handset speaker when the handset is picked up off the cradle.
• The handset's audio input (mic) is the only active microphone on the kiosk.

Kiosk Wiring Guide

1. The first splitter cable (highlighted in Yellow) plugs into the speakerphone.
2. The second splitter cable (highlighted in Red) plugs into the headset end of the first splitter cable.
3. The yellow and white cable (highlighted in Teal) plugs into the handset plugs using the second splitter cable.
4. The black cable from the speaker amp (highlighted in Green) plugs into the handset plugs using the second splitter cable.

5. Connect the black and red wire to the microphone out on the PC (this port is typically colored pink).

Windows Audio Settings

1. Navigate to the Windows sound settings.

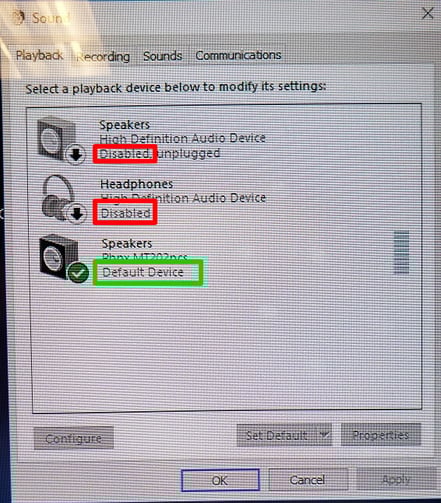

2. Navigate to the Playback tab.
3. Disable all playback devices except for speakerphone.
4. Set the speakerphone to the default device.

5. Navigate to the Recording tab.
6. Disable all devices except for the Microphone device from the handset.
7. Set the device as the Default device.

ALICE Directory Audio Settings

1. Launch the ALICE Configuration.
2. Set the following Audio  settings:
   1. Audio Input Devices: Microphone
   2. Audio Output Devices: Speakerphone
