Replacing the M.2 SATA SSD drive on 22" ELO devices.

This article provides a step-by-step guide for replacing the M.2 SATA SSD on an ELO i-Series 2.0 device.

  1. Place the Windows I-Series 2.0 device face down on a protective surface and disconnect the power.

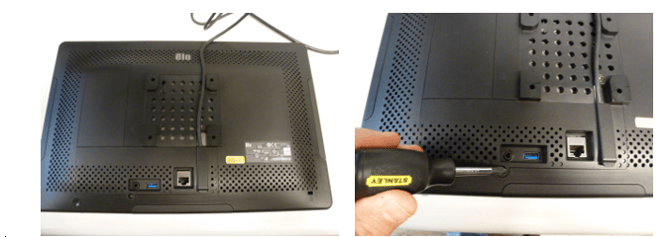

  2. Using a #2 Phillips screwdriver, remove the screw that holds the small plastic cover on the bottom of the unit.
    hFbxD_hdCgoMWfj7L_3DyOCnA_5vXfYeTA

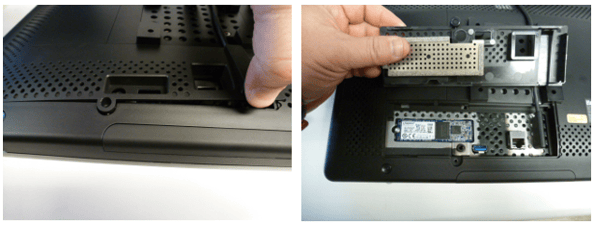

  3. Pull up on the plastic cover to remove it.GxCGcoT_mog1SUhFreADI5tAiPYJoHBx5w
  4. Using the #2 Phillips screwdriver, remove the screw that holds the SSD in place.5a-dk5e7k3wgtOPz4atxRqksRGrDssPH3A

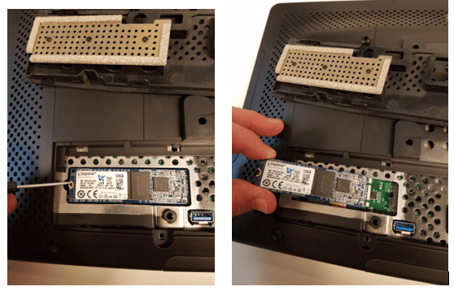

  5. Remove the M.2 SATA SSD from the slot and replace with a compatible drive.wuqrZGuMF3qyinmad0KxrT4ssJ5uyz4qSA
  6. Replace the screws and the back cover.
